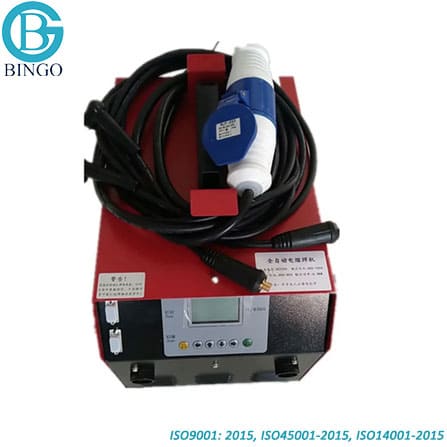

20-1600mm Fully Automatic Electro Fusion Welding Machine
HDPE pipe and fittings welding machines provided by us are extensively used in different HDPE pipeline construction projects.
-
- 1.Welding Control: Automatic Electro Fusion Welding Machine
- 2.Welding Range: 20-1600mmmm
- 3.Application: HDPE/PP/PVDF Pipe and fittings
- 4.Packing: Plywood Cases
- 5.Warranty: 1 Year
- 6.MOQ: 1 Set is available
- 7.HS Code: 8515290000
Quick Details of 20-1600mm Fully Automatic Electro Fusion Welding Machine
20-1600mm Fully Automatic Electro Fusion Welding Machine is Applicable to connected to PE, PP, PVDF pipe and tube, pipe and pipe fittings at work site, also can be used in the workshop as well. All model machines can comply with the relevant ISO and DVS and Chinese welding standards.
 |
 |
Features of 20-1600mm Fully Automatic Electro Fusion Welding Machine
1. High-level MCU is used as control core, with abundant parameter setting, measuring and perfect protective function
2. High brightness liquid crystal display, Chinese and English language operation, man-machine interactive interface. Wide power supply and voltage input, suitable for on-the-spot electric network level.
3. High precision control to electric energy and time, insuring welding quality
4. Swiftly output response time when power supply breaks, high stability
5. With 10 phases programmable welding function, suitable for welding requirement of various fittings
6. Flexible welding parameter input mode: Manual input through keyboard or bar code scanning input
7. Large capacity welding data storage
8. Optimizing design and SMT welding craftwork, reducing failure rate of whole machine.
Optional Parts of 20-1600mm Fully Automatic Electro Fusion Welding Machine
- 1. Portable Printer
- 2. Scraper
- 3. bar code scanning
- 4. HDPE/PVC Pipe roller(20-2000mm)
- 5. HDPE/PVC pipe cutter(Electric Cutting Machine or Manual cutter)
 |
 |
 |
 |
 |
 |
 |
 |
Test and Debug of 20-1600mm Fully Automatic Electro Fusion Welding Machine
All products will be tested before packing to ensure that the machine is in good condition, normal operation, and debugging to normal usage of the state.
Warranty, Packaging and Shipping of HDPE Welding Machine
12 Months for our welding machine under normal using conditions.
All the parts of our Welding Machine could be replaced by 80% of the original parts cost after warranty period.
All Welding Machine & part will be packaged by the export standard plywood case to protect the welding machine and all part against damage.
- 1.Shipped by Air for urgent requirements.
- 2.Shipped by LCL container service for less then one container, without any other requirements.
- 3.Shipped together with our HDPE/PVC pipe and fittings in the container.
- 4.Shipped together with your other products you ordered from China.
Packing Photos of 20-1600mm Fully Automatic Electro Fusion Welding Machine
 |
 |
Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
Major Parameter of 90-355mm CNC Automatic Hydraulic Butt Fusion Welding Machine
| Type: Fully Automatic Electro Fusion Welding Machine | |||||
| Plastic Pipe And Fittings Diameter Range Of Welding: 20-1600mmmm | |||||
| Major Parameter: 20-1600mm Fully Automatic Electro Fusion Welding Machine | |||||
| 型号Type | BG350 | BG351 | BG6300 | BG7500 | BG12000 |
| 焊接范围fusion range | ≤400mm | ≤400mm | ≤630mm | ≤1000mm | Suitable for all |
| 适用产品 Suitable Products | PE电熔管件, PP电熔管件，钢丝骨架复合管 PE EF fittings, PP EF fittings, steel wire skeleton composite pipe & fIttings | ||||
| 输出功率 Power Output | 3500W | 3500W | 6300W | 7500W | 12000W |
| 输出电压 output voltage | DC3-70V | DC3-190V | DC3-110V | DC3-140V | DC3-200V |
| 输入电压Input Voltage | AC 150-250V | AC 150-250V | AC 150-250V | AC 150-250V | AC 220-380V |
| 频率 Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| 输出电流 Output Current | DC3-60A | DC3-60A | DC3-80A | DC3-80A | DC3-80A |
| 使用环境温度 Ambient Temperature | -15°C ~50°C | -15°C ~50°C | -15°C ~50°C | -15°C ~50°C | -15°C ~50°C |
| 相对湿度 Reletive Humidity | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% |
| 时间调整范围 Time Adjusting Range | 1-9999 seconds | 1-9999 seconds | 1-9999 seconds | 1-9999 seconds | 1-9999 seconds |
| 时间误差 Time Error | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% |
| 存储数据量 Amount of Stored Data | 400 Times | 400 Times | 400 Times | 400 Times | 400 Times |
| 控制方式 Control Mode | Constant Voltage Constant Current | Constant Voltage Constant Current | Constant Voltage Constant Current | Constant Voltage Constant Current | Constant Voltage Constant Current |
| 包装 package | 木箱/纸箱 | 木箱/纸箱 | 木箱/纸箱 | 木箱/纸箱 | 木箱/纸箱 |
| wooden case/carton | wooden case/carton | wooden case/carton | wooden case/carton | wooden case/carton | |
| 尺寸size | 44*22*31CM | 44*22*31CM | 50*30*33CM | 50*30*33CM | 50*30*33CM |
| 净重N.W. | 9KGS | 9KGS | 12KGS | 12KGS | 14KGS |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information.
Please Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
Applications of 90-355mm CNC Automatic Hydraulic Butt Fusion Welding Machine
HDPE Pipe And Fittings Butt Fusion Welding Machines Provided By Us Are Extensively Used In Different Hdpe Pipeline Construction Projects Or Workshop.
 |
 |
| HDPE Electrofusion Machine For Water Pipes | HDPE Electrofusion Machine For Gas Pipes |
 |
 |
| HDPE Butt Fusion Machine For Water Supply Pipes | HDPE Butt Fusion Machine For Gas Pipes |
20-1600mm Fully Automatic Electro Fusion Welding Machine
