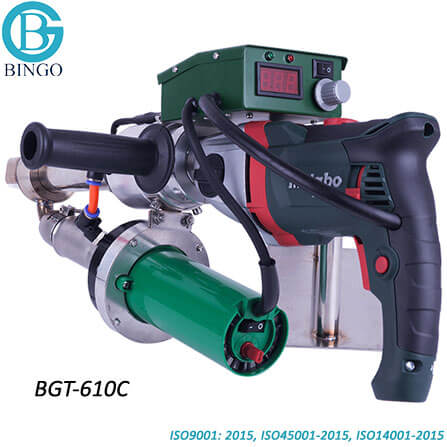

Dual Heating Extrusion Welder Series BGT-610A/B/C

BGT-610A/B/C series Extrusion welding torch to realize the functions of dual independent heating of base material and welding rod, digital temperature control display, 360-degree rotating welding torch, and motor cold start protection. Suitable for welding of PE and PP plastics.

  • 1.Rated Voltage: 230V(can be customized).
  • 2.Extruding Motor Power: 1300W
  • 3.Hot Air Power: 1600W/3400W
  • 4.Driving Motor: METABO.
  • 5.Delivery: In Stock, Quick Deliery.
  • 6.Packing:Packing by aluminium box.
  • 7.MOQ: 1 Set.
  • 8.Warranty:1 year.

The welding machine adopts advanced hot air heating structure, small size, light weight, and fast welding speed. It can ensure the best welding effect for corrosive materials or construction in harsh environments.BGT-610A/600C the shape design of the extrusion drill blower makes it possible to weld quickly even in small welding occasions. BGT-610B using 3400w hot air blower and 800w welding rod heating coil double heating system, the heating temperature of base material and welding rod can be independently controlled. Especially for the welding of thick plastic plates. The product is used in tunnels, subways, water conservancy, aquaculture, Waterproof and anti-seepage projects in biogas digesters, landfills, chemical mining, sewage treatment, roof construction and other fields.

1. Accept small orders and satisfy small batch customization services.

2. Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

3. The LCD display of the control box is more intuitive and convenient.

4. The intelligent control system adopts double protection, drive motor cold start protection, automatic heating temperature compensation, improve the reliability of the extrusion welding gun, try to avoid malfunctions caused by misoperation, and extend the service life of the machine.

Details of Dual Heating Extrusion Welder Series BGT-610A/B/C

Dual Heating Extrusion Welder Series BGT-610A/B/C for HDPE Geomembrane, PE/PP and other plastic material

We have completed HDPE Fittings and Welding Machine, tools to completed with our HDPE Pipe for your construction, One-stop supply, to meet your different requriement, save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specification of Dual Heating Extrusion Welder Series BGT-610A/B/C

Model BGT-610A BGT-610B BGT-610C
Rated Voltage 230V 230V 230V
Frequency 50/60HZ 50/60HZ 50/60HZ
Extruding Motor Power 1300W 1300W 1300W
Hot Air Power 1600W 3400W 1600W
Welding Rod Heating Power 800W 800W 800W
Air Temperature 20-620℃ 20-620℃ 20-620℃
Extruding Temperature 50-380℃ 50-380℃ 50-380℃
Extruding Volume 2.0-3.0kg/h 2.0-3.0kg/h 2.0-3.0kg/h
Welding Rod Diameter Φ3.0-5.0mm φ3.0-5.0mm Φ3.0-5.0mm
Driving Motor METABO METABO METABO
Body weight 7.2kg 7.2kg 7.2kg
Certification CE CE CE
Warranty 1 year 1 year 1 year

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@bingopipes.com or Mobile:(WhatsApp): +86 155 15596408.

Dual Heating Extrusion Welder Series BGT-610A/B/C for HDPE Geomembrane, PE/PP and other plastic material

Dual Heating Extrusion Welder Series BGT-610A/B/C
