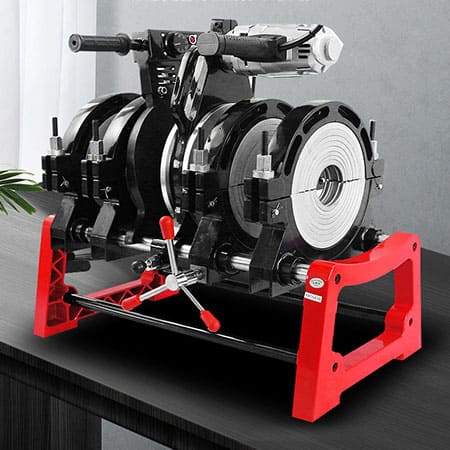

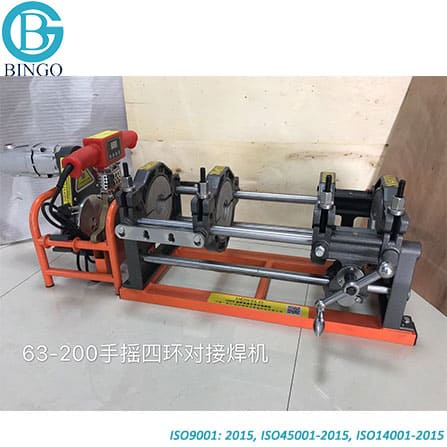

63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

HDPE pipe and fittings welding machines provided by us are extensively used in different HDPE pipeline construction projects.

    • 1.Welding Control: Manual Rotated Type
    • 2.Welding Range: 63-200mm
    • 3.Application: HDPE/PP/PVDF Pipe and fittings
    • 4.Packing: Plywood Cases
    • 5.Warranty: 1 Year
    • 6.MOQ: 1 Set is available
    • 7.HS Code: 8515290000

Quick Details of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

63-200mm Boutique Manual Rotated Butt Fusion Welding Machine 4 Rings is Applicable to connected to PE, PP, PVDF pipe and tube, pipe and pipe fittings at work site, also can be used in the workshop as well. All model machines can comply with the relevant ISO and DVS and Chinese welding standards.

63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings
63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings

Features of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

1. Assembled by the frame, hydraulic controller, planning tool, support of planning tool & the heating plate, the heating plate and the optional accessories;

2. Independent temperature control of the heating plate and PTFE surface coating;

3. Heating control with precision and stable electronic temperature control device, and provide the deviation correction function;

4. Electric planning tool;

5. Main body of Frame is Aluminium alloy. 45 ° inclined design, simple structure and easy to use;

6. Welding position can be transformed. Convenient to weld all kinds of pipe fittings;

7. All of the sealing ring and joint device were imported from the international famous brand.

Optional Parts of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

  • 1. Flange welding special liners
  • 2. Layer liners
  • 3. Hot plate automatic popup device
  • 4. Planning tool flip device
  • 5. HDPE/PVC Pipe roller(20-2000mm)
  • 6. HDPE/PVC pipe cutter(Electric Cutting Machine or Manual cutter)
  • 7. Moving trailers(Suitable for large diameter welding machine)
63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings
63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-250mm Boutique Manual Rotated Butt Fusion Welding Machine for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings

Test and Debug of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

All products will be tested before packing to ensure that the machine is in good condition, normal operation, and debugging to normal usage of the state.

Warranty, Packaging and Shipping of HDPE Welding Machine

12 Months for our welding machine under normal using conditions.

All the parts of our Welding Machine could be replaced by 80% of the original parts cost after warranty period.

All Welding Machine & part will be packaged by the export standard plywood case to protect the welding machine and all part against damage.

  • 1.Shipped by Air for urgent requirements.
  • 2.Shipped by LCL container service for less then one container, without any other requirements.
  • 3.Shipped together with our HDPE/PVC pipe and fittings in the container.
  • 4.Shipped together with your other products you ordered from China.

Packing Photos of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Major Parameter of 63-160mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

63-160mm Manual Rotated Type Butt Fusion Welding Machine
Plastic Pipe And Fittings Diameter Range Of Welding: 63-160mm
Major Parameter of Manual Rotated Type Butt Fusion Welding Machine:
BFY160 Includes basic fra me, planing tool, heating plate, hydraulic unit, stand and trolly 包括机架,铣刀,加热板,液压站,附件支架和手推车
Fusion Range 焊接范围 Dia: 63 75 90 110 125 140 160 Package(mm)包装 Wooden Case 木箱 500X550X440
操作方式 Operating Type 手摇 Manual Rotated Type Gear Shaft Drive Total Volume 总体积 (CBM) 0.3CBM
Butting Deviation 对接误差 ≤ 0.3mm G.W.毛重 ( Total总重) 42.5KG
Temperature Deviation 温度误差 ±3°C Power(W)功率
Heating plate Max Temperature 加热板最高温度 270°C Heating Plate 加热板 1.6KW/220V
Applicable Material 适用材料 PE/PP-R/PB/PVDF/PP/MPP Planing Tool 铣刀 0.68KW/220V
Ambient Temperature 环境温度 -5~40°C Weight of Heating Plate 加热板重量 3.2KGS
Required Time for Welding Temperature 达到焊接温度所需时间 < 20min Weight of Planing Tool 铣刀重量 6.2KGS
Power Plug 电源插头 Option for EN, EU, US standard

63-200mm Boutique Manual Rotated Butt Fusion Welding Machine

63-200mm Manual Rotated Type Butt Fusion Welding Machine
Plastic Pipe And Fittings Diameter Range Of Welding: 63-200mm
Major Parameter of Manual Rotated Type Butt Fusion Welding Machine:
BFY160 Includes basic fra me, planing tool, heating plate, hydraulic unit, stand and trolly 包括机架,铣刀,加热板,液压站,附件支架和手推车
Fusion Range 焊接范围 Dia: 63 75 90 110 125 140 160 180 200 Package(mm)包装 Wooden Case 木箱 500X550X440
操作方式 Operating Type 手摇 Manual Rotated Type Gear Shaft Drive Total Volume 总体积 (CBM) 0.3CBM
Butting Deviation 对接误差 ≤ 0.3mm G.W.毛重 ( Total总重) 47.6KG
Temperature Deviation 温度误差 ±3°C Power(W)功率
Heating plate Max Temperature 加热板最高温度 270°C Heating Plate 加热板 2.0KW/220V
Applicable Material 适用材料 PE/PP-R/PB/PVDF/PP/MPP Planing Tool 铣刀 0.68KW/220V
Ambient Temperature 环境温度 -5~40°C Weight of Heating Plate 加热板重量 3.7KGS
Required Time for Welding Temperature 达到焊接温度所需时间 < 20min Weight of Planing Tool 铣刀重量 7.3KGS
Power Plug 电源插头 Option for EN, EU, US standard

Other specifications have not been shown on our dimension chart, please CONTACT US for more information.

Please Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Applications of 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings

HDPE Pipe And Fittings Butt Fusion Welding Machines Provided By Us Are Extensively Used In Different Hdpe Pipeline Construction Projects Or Workshop.

63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings
HDPE Electrofusion Machine For Water Pipes HDPE Electrofusion Machine For Gas Pipes
63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings 63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings for HDPE Pipe and fittings
HDPE Butt Fusion Machine For Water Supply Pipes HDPE Butt Fusion Machine For Gas Pipes

63-200mm Manual Rotated Type Butt Fusion Welding Machine 4 Rings
