Geomembrane Welding Machine BGT-800 Series

Geomembrane welding machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.

1.Rated Voltage: 230V/120V (can be customized).
2.Rated Power: 800W/1100W.
3.Seam Width: 12.5mm x 2, Interior Cavity 12mm.
4.Material Thickness Welded: 0.2-1.5 mm (Single Layer).
5.Delivery: In Stock, Quick Deliery.
6.Packing:Packing by aluminium box.
7.MOQ: 1 Set.
8.Warranty:1 year.

Send E-mail Get Price

Introduction

Specifications

Application

Download

The welding machine adopts a hot wedge structure, which is small in size and light in weight. Suitable for welding of all hot melt materials such as HDPE, LDPE, PVC, EVA, ECB, PP, etc. The products are used in tunnels, subways, water conservancy, agriculture, landfills, waterproof and seepage engineering, chemical mines, sewage treatment, roof construction, etc field.

1. Accept small orders and satisfy small batch customization services.

2. Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

3.800W is the standard power, which is especially suitable for welding materials with a thickness of less than 0.8mm.

4. 1100W is an enhanced power, especially suitable for welding materials with a thickness greater than 0.8mm. In the case of the same welding quality, the speed is faster and the efficiency is higher.

5. The product comes with an additional repair spare parts kit, including repair tools, fuses, spare hot wedge and pressure rollers.

Model of Geomembrane Welding Machine BGT-800 Series

Model BGT-800/810/820 no have digital display, model BGT-800D/810D/820D have digital display.

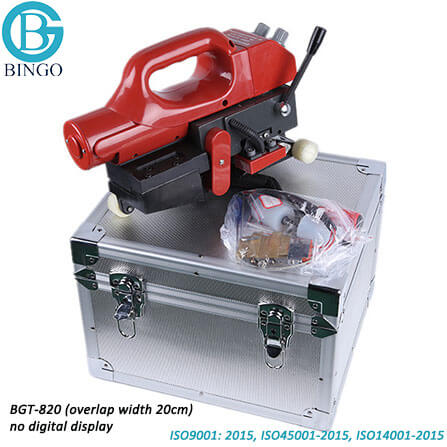

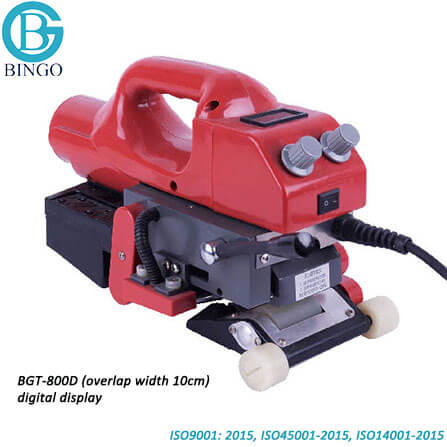

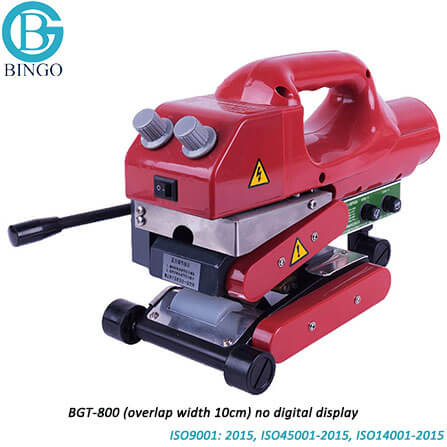

BGT-800	BGT-800D	BGT-810

BGT-810D	BGT-820	BGT-820D

Details of Geomembrane Welding Machine BGT-800 Series

Geo Hot Wedge Welder BGT-800 Series for HDPE Geomembrane, PE/PP and other plastic material

We have completed HDPE Fittings and Welding Machine, tools to completed with our HDPE Pipe for your construction, One-stop supply, to meet your different requriement, save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specification of Geomembrane Welding Machine BGT-800 Series

Model	BGT-800	BGT-800D	BGT-810	BGT-810D	BGT-820	BGT-820D
Rated Voltage	230V/120V	230V/120V	230V/120V	230V/120V	230V/120V	230V/120V
Rated Power	800W/1100W	800W/1100W	800W/1100W	800W/1100W	800W/1100W	800W/1100W
Frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Heating Temperature	50~450℃	50~450℃	50~450℃	50~450℃	50~450℃	50~450℃
Welding Speed	0.5-5m/min	0.5-5m/min	1-5m/min	1-5m/min	0.5-5m/min	0.5-5m/min
Material Thickness Welded	0.2mm-1.5mm(single layer)	0.2mm-1.5mm(single layer)	0.2mm-1.5mm(single layer)	0.2mm-1.5mm(single layer)	0.2mm-1.5mm(single layer)	0.2mm-1.5mm(single layer)
Seam Width	12.5mm*2,Interior Cavity 12mm	12.5mm*2,Interior Cavity 12mm	12.5mm*2,Interior Cavity 12mm	12.5mm*2,Interior Cavity 12mm	12.5mm*2,Interior Cavity 12mm	12.5mm*2,Interior Cavity 12mm
Weld Strength	≥85%material	≥85% material	≥85% material	≥85% material	≥85% material	≥85% material
Overlap Width	10cm	10cm	15cm	15cm	20cm	20cm
Digital Display	No	Yes	No	Yes	No	Yes
Body Weight	5kg	5kg	5.5kg	5.5kg	6kg	6kg
Warranty	1 year	1 year	1 year	1 year	1 year	1 year
Certification	CE	CE	CE	CE	CE	CE
Aplication	Waterprooofing projects: tunnels, subway, water conservacy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on		Waterprooofing projects: tunnels, subway, railway		Plastic sheets welding use in railing and tunnels.
