HDPE Hot Wedge Welding Machine BGT-GM Serie

BGT-GM series thick geomembrane welding machines suitable for 0.2-2.0mm thickness hot melt materials such as PE, PVC, HDPE, EVA, PP, and so on.

1.Rated Voltage: 230V/120V (can be customized).
2.Rated Power: 1400W/600W.
3.Seam Width: 15mm x 2, Interior Cavity 20mm.
4.Material Thickness Welded: 0.2-2.0 mm (Single Layer).
5.Delivery: In Stock, Quick Deliery.
6.Packing:Packing by aluminium box.
7.MOQ: 1 Set.
8.Warranty:1 year.

Send E-mail Get Price

Introduction

Specifications

Application

Download

This welding machine adopts advanced thermal braiding structure, which is smaller in size, lighter in weight and larger in power. It is suitable for welding various hot film materials of 0.2 to 2.0 mm. It has two-way film forming and one-way same side film forming machines. The product is suitable for the construction of anti-seepage projects in tunnels, subways, water conservancy, aquaculture, ponds, landfills, chemical mines, etc., sewage treatment, roof waterproofing and other fields.

1. Accept small orders and satisfy small batch customization services.

2. Meet the voltage requirements of 120V and 230V in different countries and the plug requirements of EU standards, American standards, and British standards.

3.This machine can not only display the welding temperature and welding speed, the control system adopts closed-loop control, regardless of the external voltage change, or the welding direction up or down under the change of the external environment, such as negative feedback automatically adjusts the set temperature and speed to make welding The parameters are more stable and the welding quality is more reliable

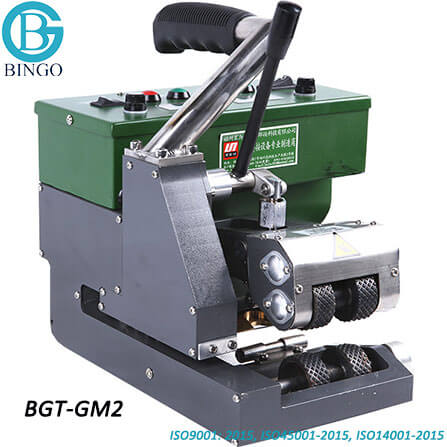

Model of HDPE Hot Wedge Welding Machine BGT-GM Serie

HDPE Hot Wedge Welding Machine BGT-GM Serie for HDPE Geomembrane, PE/PP and other plastic material

Details of Geomembrane Welding Machine BGT-GM Series

We have completed HDPE Fittings and Welding Machine, tools to completed with our HDPE Pipe for your construction, One-stop supply, to meet your different requriement, save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specification of HDPE Hot Wedge Welding Machine BGT-GM Serie

Model	BGT-GM1	BGT-GM2
Rated Voltage	230V/120V	230V/120V
Rated Power	1400W	600W
Frequency	50/60HZ	50/60HZ
Heating Temperature	50~450℃	50~450℃
Welding Speed	0.5-6.0m/min	100-1000N
Welding pressure	100-1000N	0.5-5.0m/min
Material Thickness Welded	0.2mm-2.0mm single layer	0.2mm-2.0mm single layer
Seam Width	15mm*2,Interior Cavity 15mm (customized)	15mm*2,Interior Cavity 15mm (customized)
Weld Strength	≥85%material	≥85%material
Overlap Width	12cm	12cm
Membrane Laying Ways	Membrane laying way by one edge against the other edge	Single side to the same side into the membrane
Digital display function	Temperature and speed dual display	Temperature and speed dual display
Body weight	9kg	7.5kg
Warranty	1 year	1 year
Aplication	Waterprooofing projects: tunnels, subway, water conservacy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on
