UPVC Pipes and Fittings Underground Drainage and Sewerage Pipes

PVC-U is the predominant and oldest material used in sewage systems and it has kept its dominance even after new materials came into use.

1.Delivery: 10-30 days depending on the total quantity.
2.Packing: 11.8m or 5.8m/ Pcs for straight, with plain ends, RRJ end or SCJ end.
3.CO (Certificate of Origin): China, CO could be provided by free.
4.Products Inspection: Raw material, production process, delivery or third-party factory inspection
5.MOQ: Trial Order or 1*20ft containers by mixed loading.

Send E-mail Get Price

Introduction

Specifications

Application

Download

Quick Details of Unplasticised polyvinyl chloride Underground Drainage and Sewerage Pipes

Products details information		Company/Factory Strength
Product name	Unplasticised polyvinyl chloride Underground Drainage and Sewerage Pipes	Production Capacity	120*40ft containers/month
Brand	Bingo pipeline(Customer brand is available)	Sample	Free sample could be provided
Dia Ranges	DN20-800mm(1/2 inch-32 inch)	Quality	QA & QC system, Ensure traceability of each process
Application	drinking water, fresh water, portable water...	Warranty	50 years with normal use
Raw material	U PVC...	Certificates	ISO9001, OHSAS 18001, ISO14001,CE...
Standards	EN 1401, EN ISO 1452, EN ISO 15493, ASTM D2241, ISO4422, ASTM D1785...	Delivery time	5-30 days, depending on the quantity
Length	5.8m or 11.8m/ length(customizable)	Test/Inspection	National Standard Laboratory/ Pre-delivery inspection
Place of Origin	China	Service	Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service
Pressure Class	from PN4 to PN25	Management	Effective 8S Management System
Color	Grey or blue, others colors is option	No. of employees	More than 300 people
Matching products: U PVC fittings, Solvent Cement fittings, Flanges, Valves, Water Meter, Flow Gauge, Glue and tools, etc.

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Description of Unplasticised polyvinyl chloride Underground Drainage and Sewerage Pipes

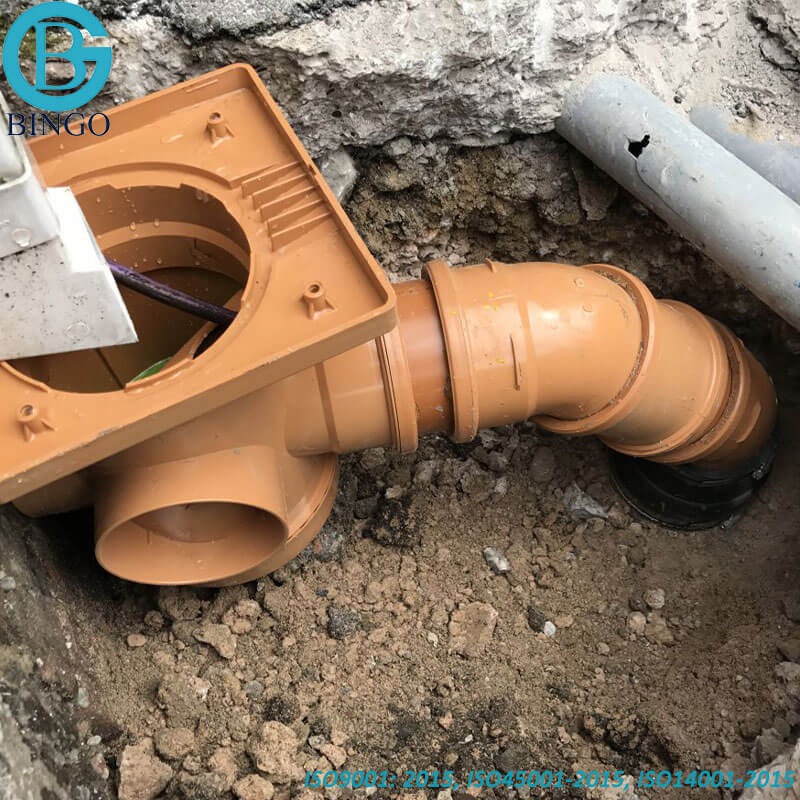

The UPVC pipes and fittings are often widely used in underground drainage and sewerage application, including the pressured U PVC pipes and non-pressure UPVC pipes, with a complete range of fittings for underground drainage.

We offers complete drainage solutions starting from Phonoline soundproof system for above ground drainage up to private sewers and connections onto public mains.

Pipes and fittings are made of U PVC for non pressure underground drainage and sewage applications, Nominal ring stiffness and standard dimension ratio must be as specified in the present technical handbook, reaches conform to EN1401, ranges from DN110m to 1000mm, manufactured in compliance with EN1401 norm. Push fit joints system(spigot/socket) with sealing lip rings, with the injected molded Inspection Chambers for valves and manhole.

Advantages of Unplasticised polyvinyl chloride Underground Drainage and Sewerage Pipes

1.Easy handing and installation. U PVC pipes and fittings are lightweight(approximately one sixth the weight of steel pipes), which results in reducing the transportation, handing and installation cost. The installation does not require special tools other than normal pipe cutter.

2.Chemical and Corrosion Resistance. UPVC pipes and fittings are highly resistant to wide range of strong acids, alkalis, salt solutions, alcohols, and many other chemicals. This property makes U PVC pressure pipes and fittings preferred in corrosive application. The UPVC pipes and fittings are able to stand with low pH levels in water.

3.Long service life, up to 30-50 years

4. The roughness coefficient is small, the inner wall of the UPVC pipe is smooth, the fluid friction resistance is small, and the conveying capacity is improved.

5. High temperature resistance, the use temperature range is between -15-60°.

6. Solvent cement joint or flexible sealing rubber ring joints connection, simple construction and installation, and good sealing.

Specification of Unplasticised polyvinyl chloride(U PVC) Underground Drainage and Sewerage Pipes

Outside Diameter (mm)		S 2		S 4		S 8
Outside Diameter (mm)		SDR 51		SDR 41		SDR 34
min	max	emin	emax	emin	emax	emin	emax
110	110.3	-	-	3.2	3.8	3.2	3.8
125	125.3	-	-	3.2	3.8	3.7	4.3
160	160.4	3.2	3.8	4.0	4.6	4.7	5.4
200	200.5	3.9	4.5	4.9	5.6	5.9	6.7
250	250.5	4.9	5.6	6.2	7.1	7.3	8.3
315	315.6	6.2	7.1	7.7	8.7	9.2	10.4
355	355.6	7.0	7.9	8.7	9.8	10.4	11.7
400	400.7	7.0	8.9	9.8	11.0	11.7	13.1
450	450.8	8.8	9.9	11.0	12.3	13.2	14.8
500	500.9	9.8	11.0	12.3	13.8	14.6	16.3
630	631.1	12.3	13.8	15.4	17.2	18.4	20.5
710	711.2	13.9	15.5	17.4	19.4	-	-
800	801.3	15.7	17.5	19.6	21.8	-	-
900	901.5	17.6	19.6	22.0	24.4	-	-
1000	1001.6	19.6	21.8	24.5	27.2	-	-
Pipes to these nominal sizes are not normally available from stock. SDR 51 is applicable for application area code "U" only*

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Applications of Unplasticised polyvinyl chloride(U PVC) Underground Drainage and Sewerage Pipes

UPVC pipes and fittings are widely used in many fields.

• Distribution of cold water under pressure.
• Underground Drainage and Sewerage Lines.
• Air Conditioning Drain Systems.
• Piping networks for swimming pools facilities.
• Piping networks for rainwater utilization.
• Irrigation networks.
• Circulation of cold fluids in industry.
• Foodstuff industries.
• Transport of wide range of chemicals and corrosive fluids in the industry
