HDPE Pipes and Fittings for Water and Gas

1.Dia: OD20-1600mm for water; OD20-630mm for gas.
2.SDR: SDR6, SDR7.4, SDR9, SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41.
3.PN: PN32, PN25, PN20, PN16, PN12.5, PN10, PN8, PN6, PN5, PN4.
4.Material: PE63, PE80, PE100, PE4710, PE3608, PE3408, PE100RC.
5.Applications: Water, Mining, Gas, Marine, Chemical, Industrial, Dredging, Irrigation, Fish Fsrming, etc.
6.Standard: ISO 4427,EN12201, AS/NZS4130, ASTM 3035, DIN8074, GOST18599, DIPS, ASTM F714, ISO4437, EN1555, AS/NZS4130 .
7.Delivery: 10-20 days depending on the total quantity.
8.Packing: 11.8m or 5.8m/ Pcs for straight, 100-200m by coils for DN20-90mm.
9.CO (Certificate of Origin): China, CO could be provided by free.
10.Products Inspection: Raw material, production process, delivery or third-party factory inspection
11.MOQ: Trial Order or 1*20ft containers by mixed loading.
12.Fittings: SDR6-SDR17: Socket fusion, butt fusion, EF, Compression fittings.

Send E-mail Get Price

Introduction

Specifications

Application

Download

Bingo high-performance high-density polyethylene pipes are suitable for municipal and industrial transmission systems for potable water, oil& gas, sewer, drain, mining, irrigation, marine, dredging and reclaimed water etc. applications.

❖Quick Details of High Density Polyethylene (HDPE) pipes and fittings for water and gas

Products details information
Product name	High Density Polyethylene (HDPE) Pipes and Fittings for water and gas
Brand	Bingo pipeline(Customer brand is available)
Dia Ranges	DN20-2000mm(1/2 inch-80 inch)
Raw material	PE100, PE80, PE4710, PE3608, PE100RC...
Application	drinking water, fresh water, drainage, mining, dredging, marine, industry, chemical...
Color	Black with blue stripes, blue for water, balck with orange stripes or yellow for gas & oil
Standards	ISO 4427,EN12201, AS/NZS4130, ASTM 3035, DIN8074, GOST18599, DIPS, ASTM F714 for water; ISO4437, EN1555, AS/NZS4130, ASTM D3035 etc. for gas
Matching products	HDPE pipe fittings, Customized PE fittigns,DI/ Steel backing ring flanges, Valves, water meter, flow gauge, welding machines and tools, etc.
Company/Factory Strength
Production Capacity	120*40ft containers/month
Sample	Free sample could be provided
Quality	QA & QC system, Ensure traceability of each process
Warranty	50 years with normal use
Certificates	ISO9001, OHSAS 18001, ISO14001,CE...
Delivery time	5-30 days, depending on the quantity
Test/Inspection	National Standard Laboratory/ Pre-delivery inspection
Service	Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service
Management	Effective 8S Management System
No. of employees	More than 300 people

Welcome customers to visit the factory, or third party factory inspection is acceptable.

❖Description of High Density Polyethylene (HDPE) Pipes and Fittings for water and gas

Bingo HDPE pipe is the ideal piping solution for public and private potable water systems and gas& oil projects. HDPE pipe features a service life of over 100 years and has the versatility to perform in a variety of conditions. Bingo HDPE pipe provides a logical, low-maintenance investment in municipal and private potable water applications and gas& oil projects, could be installed with a variety of trench-less and trench technologies.

Except the water and gas applications, our HDPE pipes and fittings are widely used for Mining, Chemical, Marine, Fish Farming Cage, Industry, Dreging, Irrigation, Fire Fighting, Drainage or Sewer and Cable Protection application, please contact us(Mobile:+86 155 155 96408) to get more details about HDPE pipes and fittings solutions.

HDPE Pipe for Water

HDPE Pipe for Gaseous Fuels

❖Jointing methods that fit multiple requirements for HDPE pipes and fittings

We provide complete system solutions with engineer support based on 20 years of experience in HDPE pipes projects worldwide. All pipes section are supplied with flanges connections and blind flanges to facilitate a quick assembly and increase the overall safety of your installation. To fit your unique projects requirements. Our HDPE pipes and fittings can be jointed using several methods:


Electrofusion welding	Butt fusion welding	Socket fusion welding

Quick fittings connection	Saddle welding	Flange connection

❖HDPE Fittings Manufacturerd and Supplied together with our HDPE Pipes

HDPE Fittings We Manufacturerd and Supplied

HDPE Soclet Fusion Fittings	HDPE Butt Fusion Fittings	HDPE Electrofusion Fittings

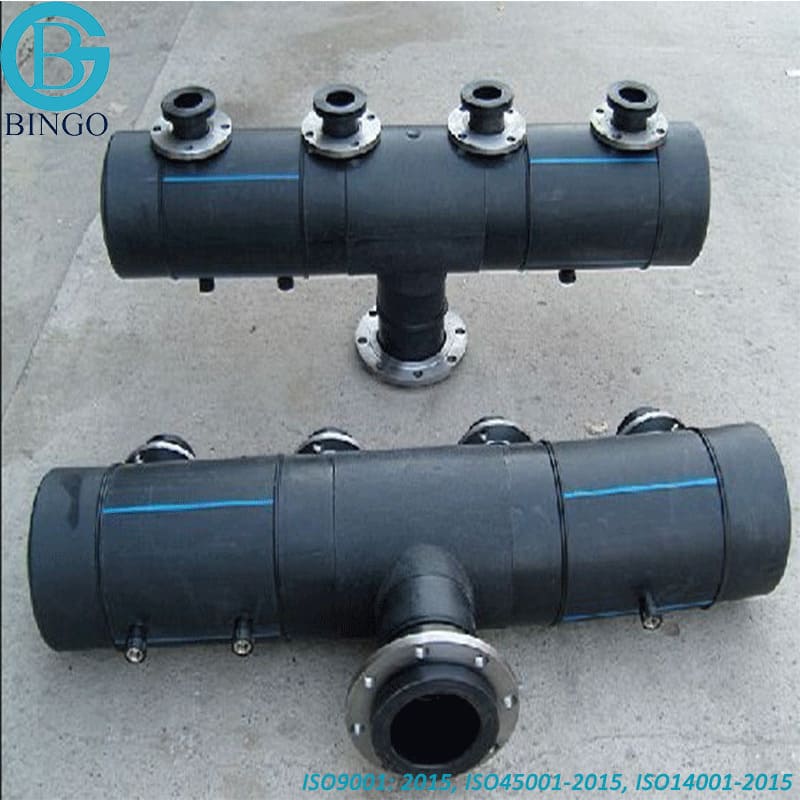

PP Compression Fittings	High Pressure FIttings SDR6-SDR17	HDPE Fabricated Segments Fittings

❖Benefits of High Density Polyethylene (HDPE) Pipes and Fittings for water and gas

Bingo HDPE pipe is well-suited for water and gas supply and transmission applications. Beneficial properties of Bingo HDPE piping systems include:

Leak-free Fused Joints. The heat-fused HDPE joints are as strong as the HDPE pipes themselves, leading to long-term, leak-free operation with little-to-no maintenance required.

Chemical Resistance. Studies show that HDPE pipes are safe for potable water applications. HPDE pipe will not corrode or tuberculate, maintaining flow velocities over the life span of the system.

Durability and Flexibility. HDPE pipe and fititngs is a more durable and flexible pipe material with a bend radius up to 20 times the pipe diameter.

Extreme Surge Tolerance. HDPE pipes are the most resistant to surge and fatigue of any potable water piping systems. HDPE pipe can handle much higher flow velocities which result in lower pressure surges compared to other potable water piping systems.

Temperature Resistance. HDPE pipe and fittings can handle fluid and environmental temperatures ranging from -40°F to 140°F, making HDPE water pipe suitable for use with hot or cold water in many different environments.

Installation. HDPE pipe and fittings is cheaper to install than other potable water piping systems, leading to a cost savings up to 65%.

We have completed HDPE Fittings and Welding Machine, tools to completed with our HDPE Pipe for your construction, One-stop supply, to meet your different requriement, save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specifications of High Density Polyethylene (HDPE) Pipes and Fittings for water ISO4427 Standard

ISO 4427-2: Plastics piping systems. Polyethylene pipes & fittings for water supply – Part 2: Pipes

EN 12201-2: Plastics piping systems for water supply – Polyethylene – Part 2: Pipes

EN 1555-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes

ISO 4437-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes

ISO 4427 Pipe Series		S 3.2	S 4	S 5	S 6,3	S 8	S 10	S 12,5	S 16	PE100
ASTM F714 DR		DR 7.4	DR 9	DR 11	DR 13.6	DR 17	DR 21	DR 26	DR 33
Nominal Pressure PE 100		PN = 25 bar	PN = 20 bar	PN = 16 bar	PN = 12,5 bar	PN = 10 bar	PN = 8 bar	PN = 6 bar	PN = 5 bar
Nominal Size DN (mm)	Equiv Size (in)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Min T.W. (mm)	Nominal Size DN (mm)
20	0.79	3.0	2.3	2.0	1.5	1.2	1.0	0.6	0.61	20
25	0.98	3.5	3.0	2.3	2.0	1.5	1.2	0.8	0.76	25
32	1.26	4.4	3.6	3.0	2.4	2.0	1.5	1.0	0.97	32
40	1.57	5.5	4.5	3.7	3.0	2.4	2.0	1.2	1.21	40
50	1.97	6.9	5.6	4.6	3.7	3.0	2.4	2.0	1.52	50
63	2.48	8.6	7.1	5.8	4.7	3.8	3.0	2.5	1.91	63
75	2.95	10.3	8.4	6.8	5.6	4.5	3.6	2.9	2.27	75
90	3.54	12.3	10.1	8.2	6.7	5.4	4.3	3.5	2.73	90
110	4.33	15.1	12.3	10.0	8.1	6.6	5.3	4.2	3.33	110
125	4.92	17.1	14.0	11.4	9.2	7.4	6.0	4.8	3.79	125
140	5.51	19.2	15.7	12.7	10.3	8.3	6.7	5.4	4.24	140
160	6.30	21.9	17.9	14.6	11.8	9.5	7.7	6.2	4.85	160
180	7.09	24.6	20.1	16.4	13.3	10.7	8.6	6.9	5.45	180
200	7.87	27.4	22.4	18.2	14.7	11.9	9.6	7.7	6.06	200
225	8.86	30.8	25.2	20.5	16.6	13.4	10.8	8.6	6.82	225
250	9.84	34.2	27.9	22.7	18.4	14.8	11.9	9.6	7.58	250
280	11.02	38.3	31.3	25.4	20.6	16.6	13.4	10.7	8.48	280
315	12.40	43.1	35.2	28.6	23.2	18.7	15.0	12.1	9.70	315
355	13.98	48.5	39.7	32.2	26.1	21.1	16.9	13.6	10.90	355
400	15.75	54.7	44.7	36.3	29.4	23.7	19.1	15.3	12.30	400
450	17.72	61.5	50.3	40.9	33.1	26.7	21.5	17.2	13.80	450
500	19.69	67.6	55.8	45.4	36.8	29.7	23.9	19.1	15.30	500
560	22.05	75.7	62.5	50.8	41.2	33.2	26.7	21.4	17.20	560
630	24.80	85.1	70.3	57.2	46.3	37.4	30.0	24.1	19.30	630
710	27.95	95.9	79.3	64.5	52.2	42.1	33.9	27.2	21.80	710
800	31.50		89.3	72.6	58.8	47.4	38.1	30.6	24.50	800
900	35.43			81.7	66.2	53.3	42.9	34.4	27.60	900
1000	39.37			90.2	72.5	59.3	47.7	38.2	30.60	1000
1200	47.24				88.2	67.9	57.2	45.9	36.70	1200
1400	55.12				102.9	82.4	66.7	53.5	42.90	1400
This product flyer is intended for reference purposes. It should not be used in place of the advice from a licensed Professional Engineer. Nominal pressure (PN) is based on C = 1,25 and an operating temperature of 20°C. Weight is calculated using DN and Minimum wall plus 6% for use in estimating fluid flow. Actual ID will vary. When designing components to fit the pipe ID, refer to pipe dimensions and tolerances in the applicable pipe manufacturing specification. To obtain pressure in psi, multiply bar by 14.5 (1 bar ≈ 14.5 psi).

High Density Polyethylene (HDPE) Pipes and Fittings Series for water and gas

Please find below HDPE pipes for different applications in accordance with different standards. Please clinck to view detailed products and specifications.

HDPE Products Series for Water Supply Application
HDPE Pipe	Standatd	Photo
Size	DN20-2000mm(1/2 inch-80 inch)
HDPE Pipe for Water PN4-PN25	HDPE Pipe for Drinking Water
	HDPE Pipe for Industry
	HDPE Pipe for Mining
	HDPE Pipe for Drainage
	HDPE Pipe for Marine
	HDPE Pipe for Fish Farming
	HDPE Pipe for Irrigation
	HDPE Pipe for Cable Protection
Standatd	ISO 4427
	EN12201
	AS/NZS4130
	ASTM 3035
	DIN8074
	GOST18599
	DIPS
	ASTM F714
HDPE Pipe for Fuel Gas Series
HDPE Pipes for Gas	Standatd	Photo
Size	DN20-630mm(1/2 inch-24 inch)
HDPE Pipe for Gas SDR21-SDR11	HDPE Pipe for Natural Gas
HDPE Pipe for Gas SDR21-SDR11	HDPE Pipe for Oil
Standatd	ISO4437
	EN1555
	GB/T15558
	ASTM D3035
	AS/NZS4130
	GOST18599
	ASTM D2513
Steel Wire Reinforced HDPE Composite Pipe
HDPE Pipe	Size	Photo
Steel Wire Reinforced Thermoplastics(HDPE) Composite Pipe And Fitting for water and gas PN4-PN35	DN50-800mm(1/2 inch-80 inch)

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

☎Please Send Email: sales@bingopipes.com or Mobile:(WhatsApp): +86 155 15596408.

Applications of High Density Polyethylene (HDPE) Pipes and Fittings for water and gas

❖HDPE Pipe and Fittings for Water Supply

1.HDPE Pipe for Sewage Treatment Plants

2.HDPE Pipe for Water Distribution System

3.HDPE pipe of potable water supply

4.HDPE Irrigation Water Systems

5.Civil construction for water supply

❖HDPE Pipe and Fittings for Natural Gas & Oil

1.Methane Gas Collection

2.Sour and wet gas lines

3.Offshore oil & gas

❖HDPE Pipe and Fittings for Mining

1.Mine Dewatering

2.Tailings Transportation

3.Water Transportation

4.Process Slurry

❖HDPE Pipe and Fittings for Chemical Industry

1.HDPE Pipe for Petrochemical plant

2.HDPE Pipe for Organic Chemicals

3.HDPE Pipe for iquor, bleaching, and caustic acid lines

4.PHDPE Pipe for Chemical plants and chemical transmission

❖HDPE Pipe and Fittings for Ohters Application

1.HDPE Pipe for Dredging

2.HDPE Pipe for Marine

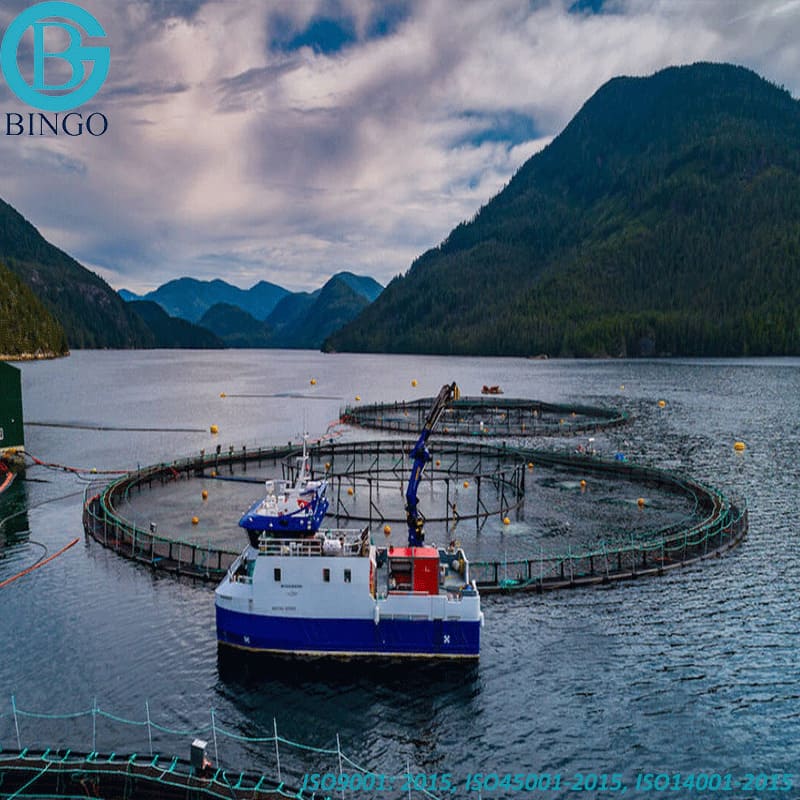

3.HDPE Pipe for Fish Farming Cages

4.PHDPE Pipe for Agricultural Irrigation

4.PHDPE Pipe for Cable Protection


HDPE Pipes for Process Water	HDPE Pipes for Municipal Water & Sewer

HDPE Pipes for Water Transportation	HDPE Pipes for Mining Industry

HDPE Pipes for Dredging Applications	HDPE Pipes for Petrochemical Industry

HDPE Pipes for Offshore Intake Head Structure	HDPE Pipes for Liquefied Natural Gas
