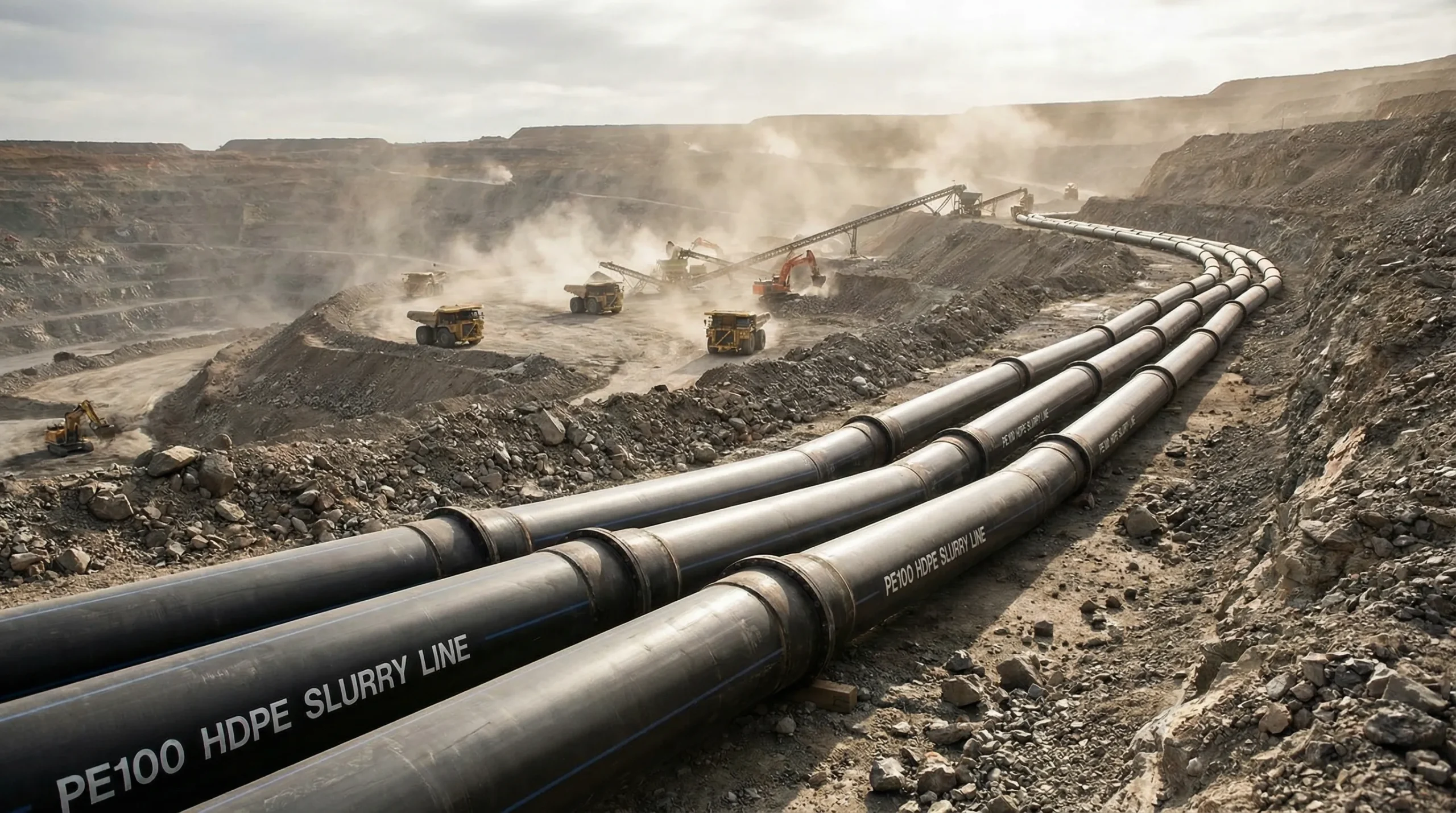

Mining operations demand piping systems that can withstand high pressure, abrasive slurries, and harsh environmental conditions. HDPE pipe for mining applications has become a preferred solution due to its excellent abrasion resistance, flexibility, corrosion resistance, and long service life. Compared with traditional steel pipelines, HDPE piping systems offer reduced maintenance costs and improved operational reliability. At Bingo Pipe, we supply high-performance HDPE piping solutions engineered specifically for mining slurry transport, tailings discharge, and water supply systems. Mining slurry pipeline installation

---

1. Design Considerations for HDPE Pipe in Mining

Designing an HDPE pipe system for mining applications requires careful evaluation of operating pressure, temperature, slurry concentration, particle size, and installation conditions. Key design factors include:

• Material Grade: PE100 and PE4710 are commonly used for high-pressure mining pipelines.
• Flow Velocity: Optimized velocity reduces sedimentation and minimizes wear.
• Temperature Rating: Elevated temperatures may reduce pressure capacity.
• Jointing Method: Butt fusion welding ensures leak-free and fully restrained systems.
• Installation Environment: Above-ground, buried, or floating applications require different structural considerations.

HDPE pipes are manufactured according to international standards such as ISO 4427, ASTM F714, and AS/NZS 4130. You can explore our complete HDPE product range. Because of its flexibility and high strain tolerance, HDPE can accommodate ground movement and seismic activity—an important advantage in mining regions.

---

2. Pressure Rating and SDR Selection

Pressure rating is one of the most critical parameters when selecting HDPE pipe for mining slurry transport. HDPE pipe pressure capacity is determined by:

• SDR (Standard Dimension Ratio)
• Material grade (PE100/PE4710)
• Operating temperature
• Design life (typically 50 years)

Common SDR classifications include SDR 11, SDR 13.6, SDR 17, and SDR 21. Lower SDR values indicate thicker walls and higher pressure ratings. For example:

• SDR 11 – High-pressure applications (PN16/PN20)
• SDR 17 – Medium-pressure slurry pipelines
• SDR 21 – Lower-pressure water transport

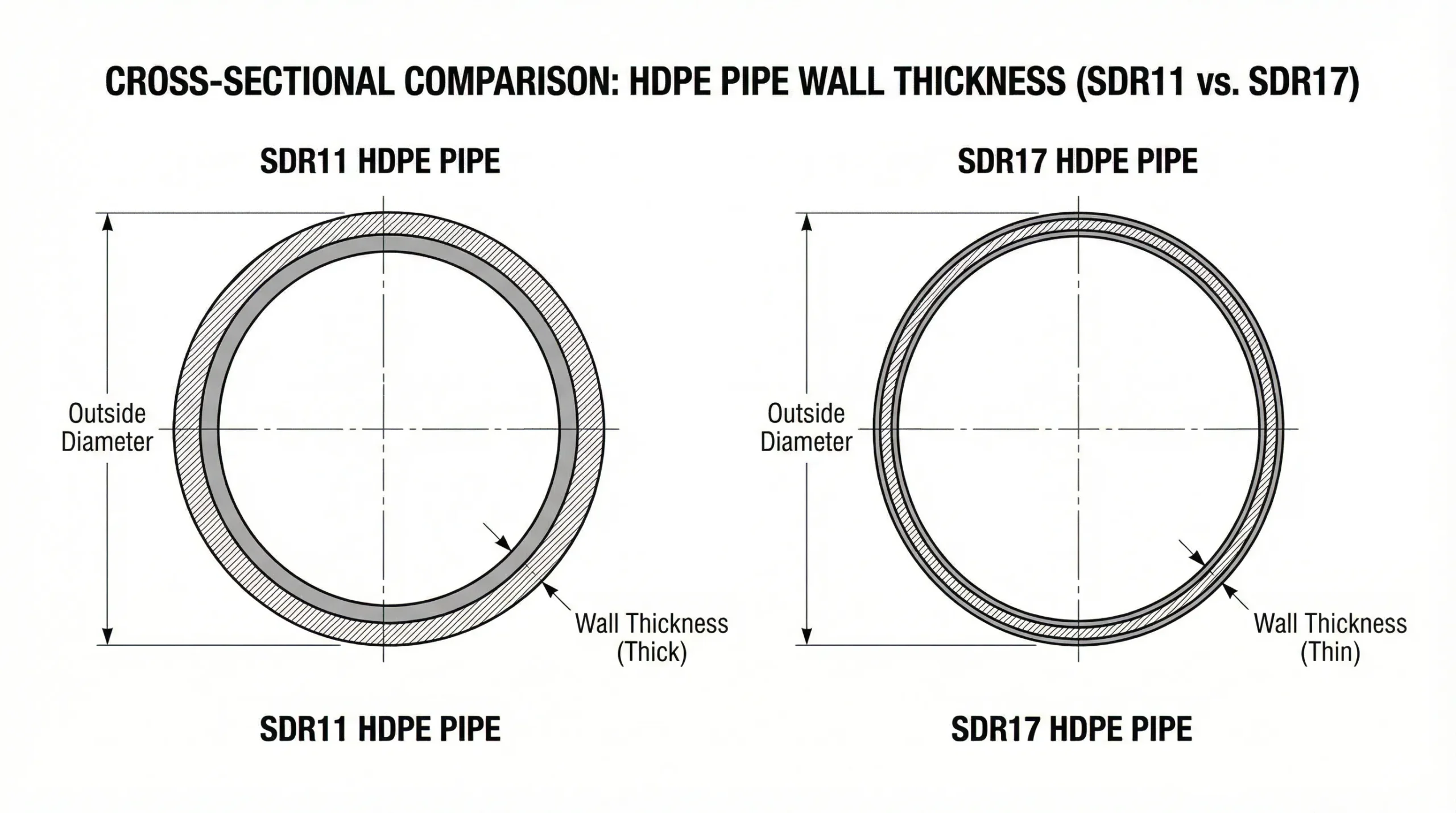

In mining environments, surge pressure and pump startup pressure must also be considered. Proper hydraulic calculations and safety factors ensure long-term system reliability. Our engineering team provides professional Bingo Pipe service support for pressure selection and system design. HDPE pipe cross-section showing SDR and wall thickness comparison

---

3. Abrasion Resistance in Slurry Transport

One of the biggest advantages of HDPE pipe in mining applications is its superior abrasion resistance. Mining slurries often contain sand, tailings, and solid particles that cause severe internal pipe wear. HDPE offers:

• Lower friction coefficient compared to steel
• Smooth internal bore reducing turbulence
• Excellent resistance to abrasive particles
• Longer service life in slurry pipelines

Studies show that HDPE pipes can outlast steel pipes by 3–5 times in highly abrasive environments. Unlike steel, HDPE does not corrode, scale, or rust, which further enhances its durability. Additionally, HDPE’s flexibility allows it to absorb pressure surges and vibrations, reducing the risk of cracking or joint failure. For complete mining pipeline solutions, visit our HDPE product range. Abrasion resistance comparison

---

4. Typical Mining Applications

HDPE piping systems are widely used in:

• Slurry transport lines
• Tailings discharge systems
• Mine dewatering pipelines
• Process water supply
• Chemical transport systems
• Heap leach irrigation lines

Because of its lightweight nature, HDPE is easier to transport and install in remote mining sites, reducing project costs and installation time.

---

Conclusion

HDPE pipe for mining applications provides a durable, cost-effective, and high-performance solution for demanding environments. With proper design, correct SDR selection, and consideration of abrasion factors, HDPE piping systems can deliver decades of reliable service. If you are planning a mining pipeline project and require technical guidance or product specifications, contact About Bingo Pipes today.
