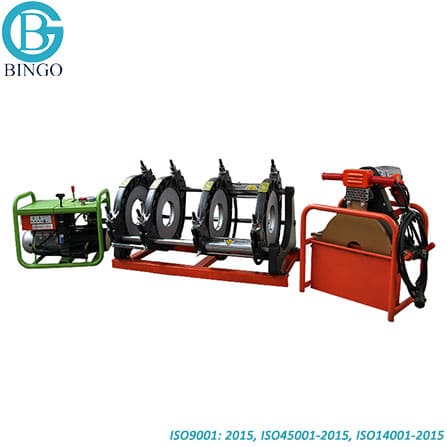

40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
HDPE pipe and fittings welding machines provided by us are extensively used in different HDPE pipeline construction projects.
- 1.Welding Control: Semi-Automatic Hydraulic Type
- 2.Welding Range: 40-160mm/63-250mm/90-315mm/90-355mm
- 3.Application: HDPE/PP/PVDF Pipe and fittings
- 4.Packing: Plywood Cases
- 5.Warranty: 1 Year
- 6.MOQ: 1 Set is available
- 7.HS Code: 8515290000
Quick Details of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
40-355mm Semi-Automatic Hydraulic Butt Fusion Welding is Applicable to connected to PE, PP, PVDF pipe and tube, pipe and pipe fittings at work site, also can be used in the workshop as well. All model machines can comply with the relevant ISO and DVS and Chinese welding standards.
 |
 |
 |
 |
 |
Features of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
1. Assembled by the frame, hydraulic controller, planning tool, support of planning tool & the heating plate, the heating plate and the optional accessories;
2. Independent temperature control of the heating plate and PTFE surface coating;
3. Heating control with precision and stable electronic temperature control device, and provide the deviation correction function;
4. Electric planning tool；
5. Main body of Frame is Aluminium alloy. 45 ° inclined design, simple structure and easy to use；
6. Hydraulic control frame, more powerful and low starting pressure to make the small diameter pipe welding is more reliable;
7. Welding position can be transformed. Convenient to weld all kinds of pipe fittings;
8. Independent dual channel timer can record the two periods of heat and cooling, timing alarm over to convenient the user;
9. Big dial, high-precision shock pressure, table read mathematical clearly;
10. All of the sealing ring and joint device were imported from the international famous brand.
Optional Parts of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
- 1. Flange welding special liners
- 2. Layer liners
- 3. Data logger(Need to use Ⅱ type hydraulic control unit)
- 4. Hot plate automatic popup device
- 5. Planning tool flip device
- 6. HDPE/PVC Pipe roller(20-2000mm)
- 7. HDPE/PVC pipe cutter(Electric Cutting Machine or Manual cutter)
- 8. Moving trailers(Suitable for large diameter welding machine)
 |
 |
 |
 |
 |
 |
 |
 |
Test and Debug of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
All products will be tested before packing to ensure that the machine is in good condition, normal operation, and debugging to normal usage of the state.
Warranty, Packaging and Shipping of HDPE Welding Machine
12 Months for our welding machine under normal using conditions.
All the parts of our Welding Machine could be replaced by 80% of the original parts cost after warranty period.
All Welding Machine & part will be packaged by the export standard plywood case to protect the welding machine and all part against damage.
- 1.Shipped by Air for urgent requirements.
- 2.Shipped by LCL container service for less then one container, without any other requirements.
- 3.Shipped together with our HDPE/PVC pipe and fittings in the container.
- 4.Shipped together with your other products you ordered from China.

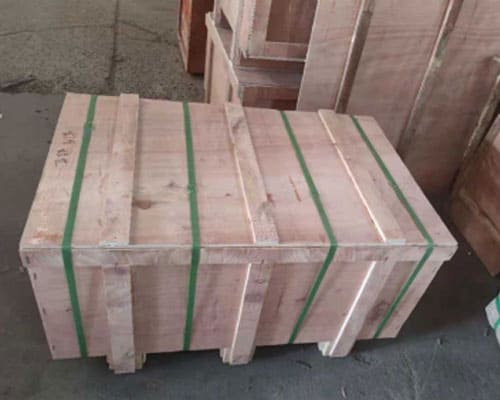

Packing Photos of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
 |
 |
 |
 |
Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
Major Parameter of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
| Plastic Pipe And Fittings Diameter Range Of Welding: 40-160mm/63-250mm/90-315mm/90-355mm | ||||
| Major Parameter of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine | ||||
| 规格型号 Specification | BGS160 | BGS250 | BGS315 | BGS355 |
| 焯接规格范围(mm) Welding Diameter(mm) | 40-160mm | 63-250mm | 90-315mm | 90-355mm |
| 加热板最高温度 Maximum temperature of heating plate | 270°C | 270°C | 270°C | 270°C |
| 加热板表面温差 (170-250°C) Surface Temperature Difference of the Heating Plate (170-250°C) | ≤±5°C | ≤±5°C | ≤±5°C | ≤±5°C |
| 液压系统工作压力范围 | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa |
| Operating Pressure Range of the Hydraulic System | ||||
| 加热板功率 Power of the Heating Plate | 1KW | 2KW | 3KW | 4KW |
| 铣刀功率 Power of the Planing Tool | 0.7KW | 1.1KW | 1.1KW | 1.1KW |
| 液压泵站功率 Power of the Hydraulic Pump Station | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
| 输入电压 Input Voltage | 220V AC 50-60Hz | 220V AC 50-60Hz | 220V AC 50-60Hz | 220V AC 50-60Hz |
| 总功率 Total Power | 2.45KW | 3.85KW | 4.85KW | 5.85KW |
| 整机净重 N.W. of the Equipment | 110KG | 130KG | 190KG | 240KG |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information.
Please Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
Applications of 40-355mm Semi-Automatic Hydraulic Butt Fusion Welding Machine
HDPE Pipe And Fittings Butt Fusion Welding Machines Provided By Us Are Extensively Used In Different Hdpe Pipeline Construction Projects Or Workshop.
 |
 |
